In industries where high-performance materials are essential, PEEK fittings have carved out a niche as a go-to solution for demanding fluid and gas handling systems. PEEK, or Polyether Ether Ketone, is a high-performance thermoplastic polymer known for its excellent mechanical and chemical resistance properties, even at elevated temperatures. Fittings made from this material are widely used in industries like aerospace, medical, chemical processing, oil and gas, and analytical instrumentation.
This article delves into what makes PEEK fittings unique, their properties, and why they are increasingly favored in environments where durability, performance, and chemical resistance are non-negotiable.
What is PEEK?
PEEK (Polyether Ether Ketone) is a semi-crystalline thermoplastic that belongs to the polyaryletherketone (PAEK) family. It was first introduced in the 1980s and quickly gained popularity due to its outstanding combination of properties. These include:
- High thermal stability (can operate continuously at 250°C, withstanding up to 300°C short-term)
- Excellent chemical resistance to acids, bases, and organic solvents
- High mechanical strength and stiffness
- Low moisture absorption
- Radiation and hydrolysis resistance
- Low outgassing, making it suitable for vacuum environments
These characteristics make PEEK an ideal candidate for applications where metal fittings might corrode or where traditional plastics would degrade.

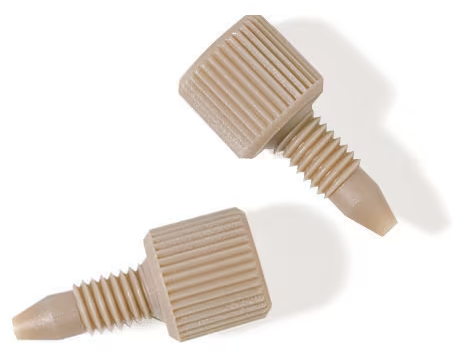

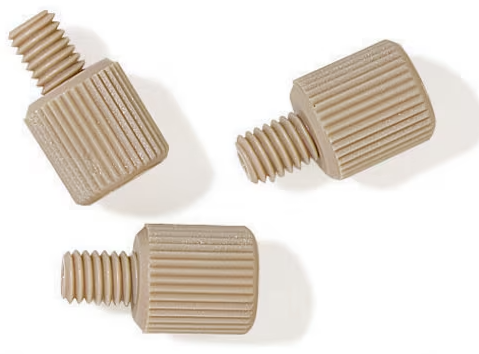

What Are PEEK Fittings?
PEEK fittings are components used to connect tubing, pipes, or other fluidic systems made specifically from PEEK material. They come in a variety of forms such as:
- Tube fittings
- Compression fittings
- Ferrules
- Connectors (tees, elbows, unions, crosses)
- Threaded adapters
- Valves and couplings
Because of PEEK’s inertness and stability, these fittings are especially suitable for high-purity and high-pressure applications.
LOCAL NEWS: 10 things you may not know are manufactured in Arizona
INDUSTRY INSIGHTS: Want more news like this? Get our free newsletter here
Key Advantages of PEEK Fittings
1. Chemical Resistance
PEEK is resistant to a wide range of chemicals including strong acids (like sulfuric and nitric acid), bases, salts, hydrocarbons, and alcohols. This makes it an ideal material for fittings in chemical processing or laboratory environments, where it may be exposed to aggressive fluids.
2. Temperature and Pressure Tolerance
PEEK fittings can operate at temperatures up to 250°C and can withstand high pressures without deforming or leaking. This makes them suitable for use in high-pressure liquid chromatography (HPLC), steam sterilization, and other high-temperature processes.
3. Low Extractables and Leachables
Because PEEK is chemically inert and stable, it doesn’t leach contaminants into fluid streams. This makes PEEK fittings ideal for pharmaceutical and biotech applications where purity is essential.
4. Biocompatibility
PEEK is biocompatible and often used in medical and life science applications. Fittings made from PEEK can be used safely in contact with biological tissues or fluids, which is essential in clinical diagnostics, drug delivery systems, and implantable devices.
5. Lightweight Alternative to Metal
PEEK fittings provide a non-metallic alternative to stainless steel or brass without compromising strength or durability. They are significantly lighter, which can reduce the overall system weight—important in aerospace or portable applications.
Common Applications of PEEK Fittings
● Analytical Instruments
In instruments such as HPLC systems, PEEK fittings are used to ensure chemical compatibility with solvents and buffers. Their non-reactive nature preserves sample integrity, which is crucial in analytical accuracy.
● Medical Devices
In clinical labs and medical equipment, PEEK fittings connect fluid pathways that carry sensitive reagents, blood, or drug compounds. Their biocompatibility and sterilizability make them ideal for these environments.
● Semiconductor Manufacturing
The high purity and low outgassing properties of PEEK make it suitable for use in cleanroom environments where even trace contamination can ruin production batches.
● Chemical Processing
PEEK fittings are used in corrosive environments such as acid baths or caustic wash stations, where metal fittings would quickly degrade. Their chemical resistance improves system longevity and reduces maintenance costs.
● Oil and Gas
In the energy sector, PEEK is valued for its ability to withstand high temperatures and pressures, as well as corrosive fluids like sour gas. PEEK fittings are found in downhole tools and subsea equipment.
Considerations When Using PEEK Fittings
While PEEK fittings offer many advantages, there are a few considerations to keep in mind:
- Cost: PEEK is more expensive than common polymers like nylon or polypropylene. However, its durability and performance often justify the initial investment.
- UV Sensitivity: PEEK can degrade over time with prolonged UV exposure, so it’s not ideal for outdoor applications unless protected.
- Machining Limitations: Although PEEK can be machined with precision, it requires specialized tools and techniques due to its hardness and melting behavior.
Conclusion
PEEK fittings are an advanced solution for fluid and gas handling systems in demanding environments. Their unmatched combination of chemical resistance, thermal stability, and mechanical strength makes them ideal for applications where other materials fail. Whether in laboratories, medical devices, semiconductor cleanrooms, or industrial plants, PEEK fittings offer long-lasting, high-performance fluidic connections.
While the upfront cost may be higher than standard materials, the longevity, purity, and reliability provided by PEEK fittings make them a smart investment for critical systems. As technology continues to evolve, the role of high-performance materials like PEEK in fittings and other components will only become more significant.
